A finite state machine is a model of how a machine should react to inputs.

Diagram 1 shows an example finite state machine.

Diagram 1

This finite state machine shows the different ways to pay 5p using 1p, 2p and 5p coins. It has 6 states (0 to 5), each showing how much money has been paid already. The arrows show the transitions between the states: each arrow has an input (1p, 2p or 5p coin) attached to it. The initial state, 0, has an arrow going into it. The final state, 5, has a double outline to show the process terminates there.

Finite state machines can also be represented using state transition tables.

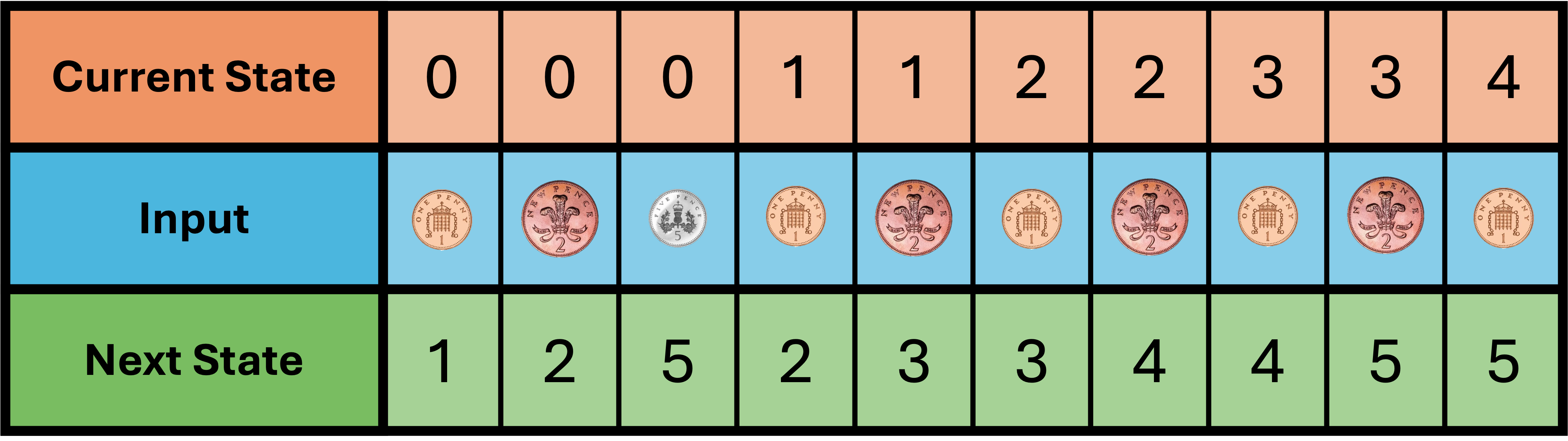

Diagram 2 shows the finite state machine from Diagram 1 represented as a state transition table.

Diagram 2

There are also types of finite state machines which have outputs. These are called Mealy machines and they have no final (accepting) states. The input and output of a transition are both written next to the arrow, separated by a pipe (|).

Diagram 3 shows a simple Mealy machine which flips the bits of a binary string.

Diagram 3

When a 0 is entered, a 1 is output, and vice versa. The state doesn't change because the arrows loop back to the same state.

---

What might finite state machines be used for?

Validating user input, controlling traffic lights, managing enemy logic in games, parsing code in compilers, and much more.

---
