A tree traversal algorithm goes through a binary tree, hitting every node in a specific order.

There are three types of tree traversal: pre-order, in-order, and post-order.

Example 1 shows some pseudocode for a pre-order traversal.

Example 1
SUBROUTINE PreOrder(root)
  OUTPUT root
  IF root.left ≠ null THEN
    PreOrder(root.left)
  ENDIF
  IF root.right ≠ null THEN
    PreOrder(root.right)
  ENDIF
ENDSUBROUTINE

Example 2 shows some pseudocode for an in-order traversal.

Example 2
SUBROUTINE InOrder(root)
  IF root.left ≠ null THEN
    InOrder(root.left)
  ENDIF
  OUTPUT root
  IF root.right ≠ null THEN
    InOrder(root.right)
  ENDIF
ENDSUBROUTINE

Example 3 shows some pseudocode for a post-order traversal.

Example 3
SUBROUTINE PostOrder(root)
  IF root.left ≠ null THEN
    PostOrder(root.left)
  ENDIF
  IF root.right ≠ null THEN
    PostOrder(root.right)
  ENDIF
  OUTPUT root
ENDSUBROUTINE

As you can see from the examples, the only difference between the three algorithms is where the output happens. In a pre-order traversal, it happens at the start. In an in-order traversal, it happens in the middle. In a post-order traversal, it happens at the end.

Let's try an example.

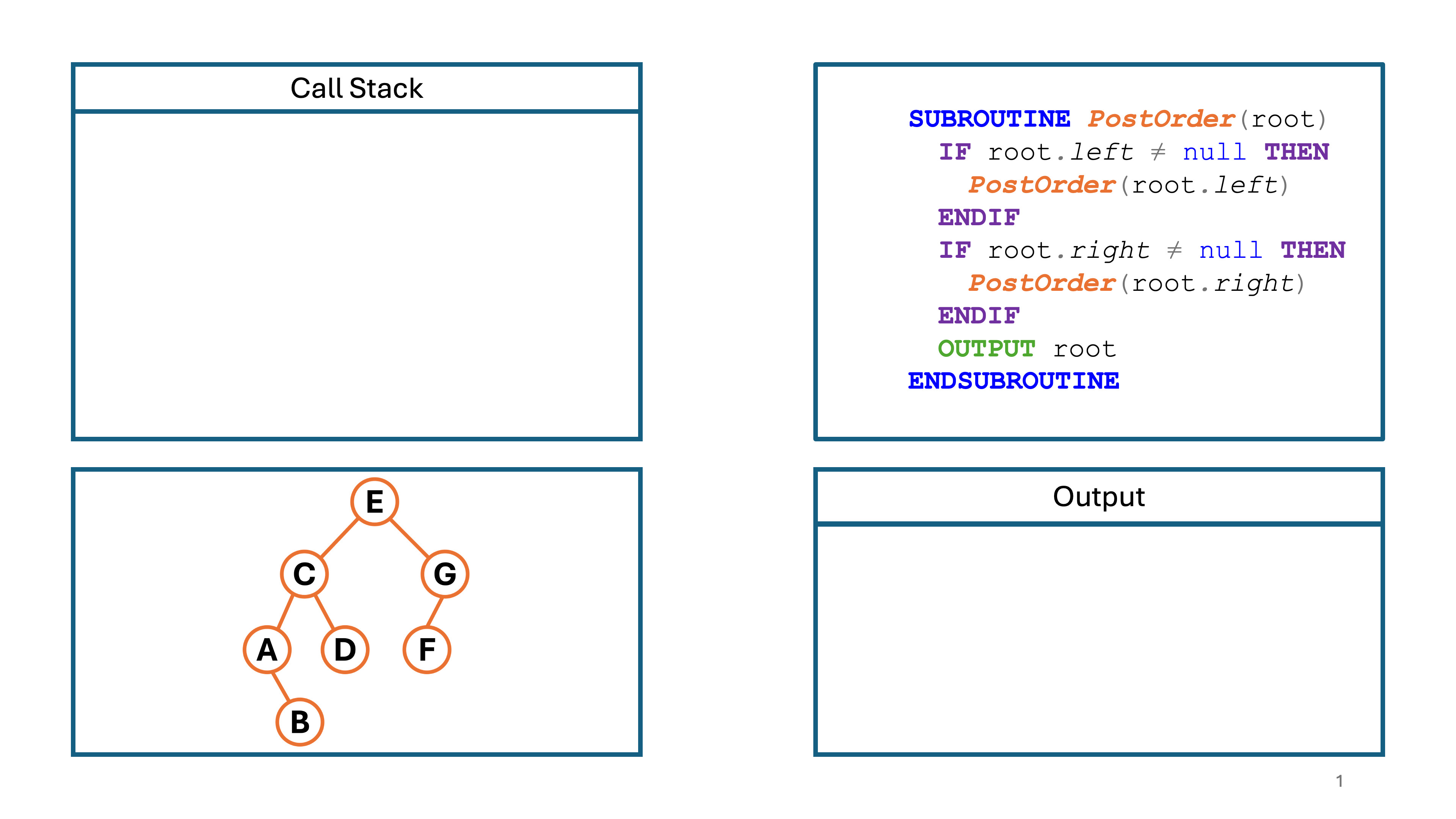

Diagram 1 shows a step-by-step animation of how a post-order traversal would work. Use the arrows to navigate.

Diagram 1

---

What would be the output of an in-order traversal on the tree shown in Diagram 1?

ABCDEFG: an in-order traversal on a binary search tree will always give the output in ascending (alphabetical) order.

---
