GCSE Link: None

A graph traversal algorithm goes through a graph, hitting every connected node.

There are two ways of implementing a graph-traversal algorithm.


A depth-first graph traversal algorithm explores each route as far as possible before backtracking.

It uses a stack to store the nodes which need to be visited.

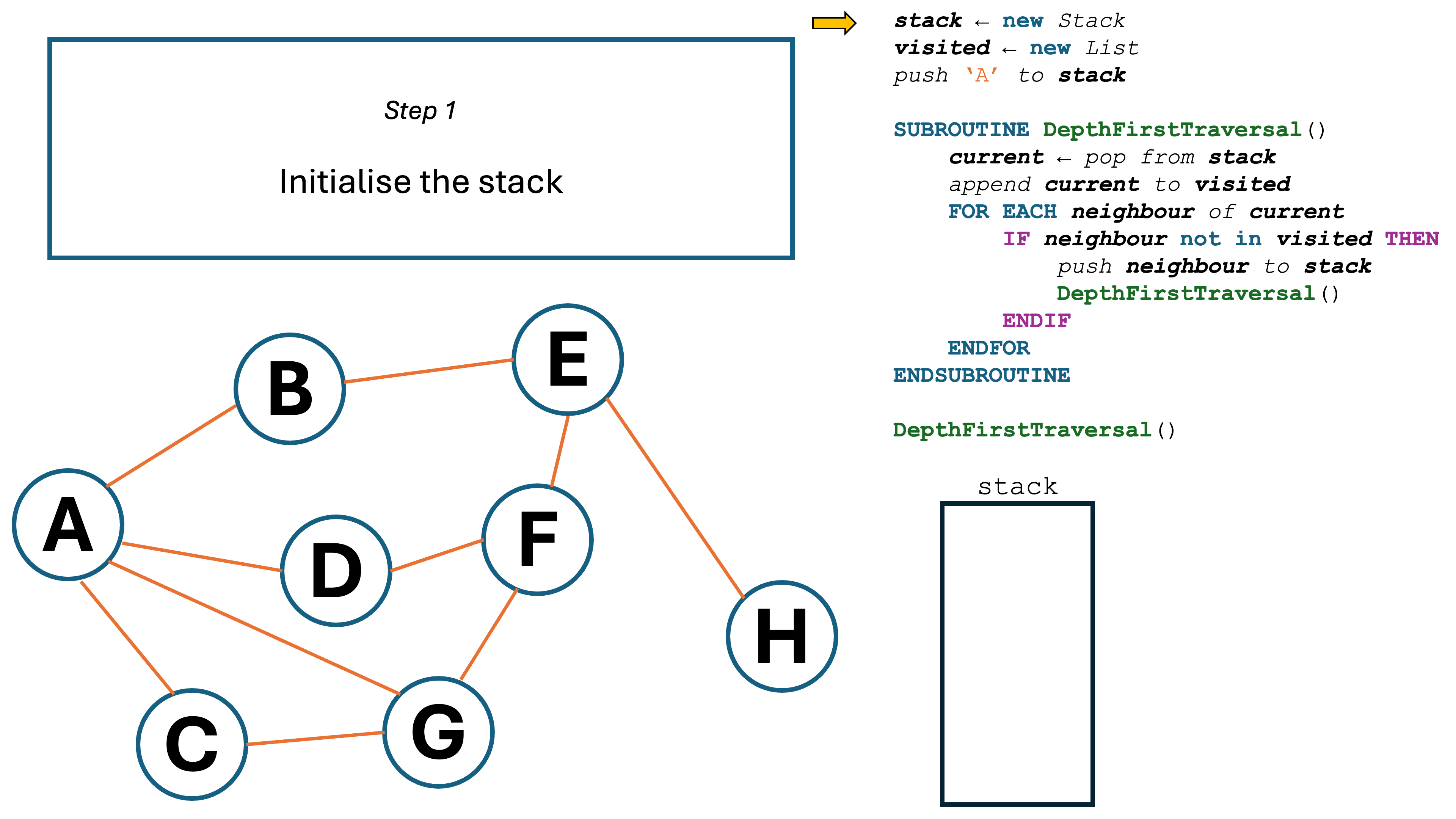

Diagram 1 shows a step-by-step animation of how a depth-first traversal would work. Use the arrows to navigate.

Diagram 1

In this example, the program went as far as possible along a single route (ABEFD) before backtracking to hit G and C, and then finally reaching H.


A breadth-first graph traversal algorithm explores all the nodes in the first layer before moving on to the next layer.

It uses a queue instead of a stack.

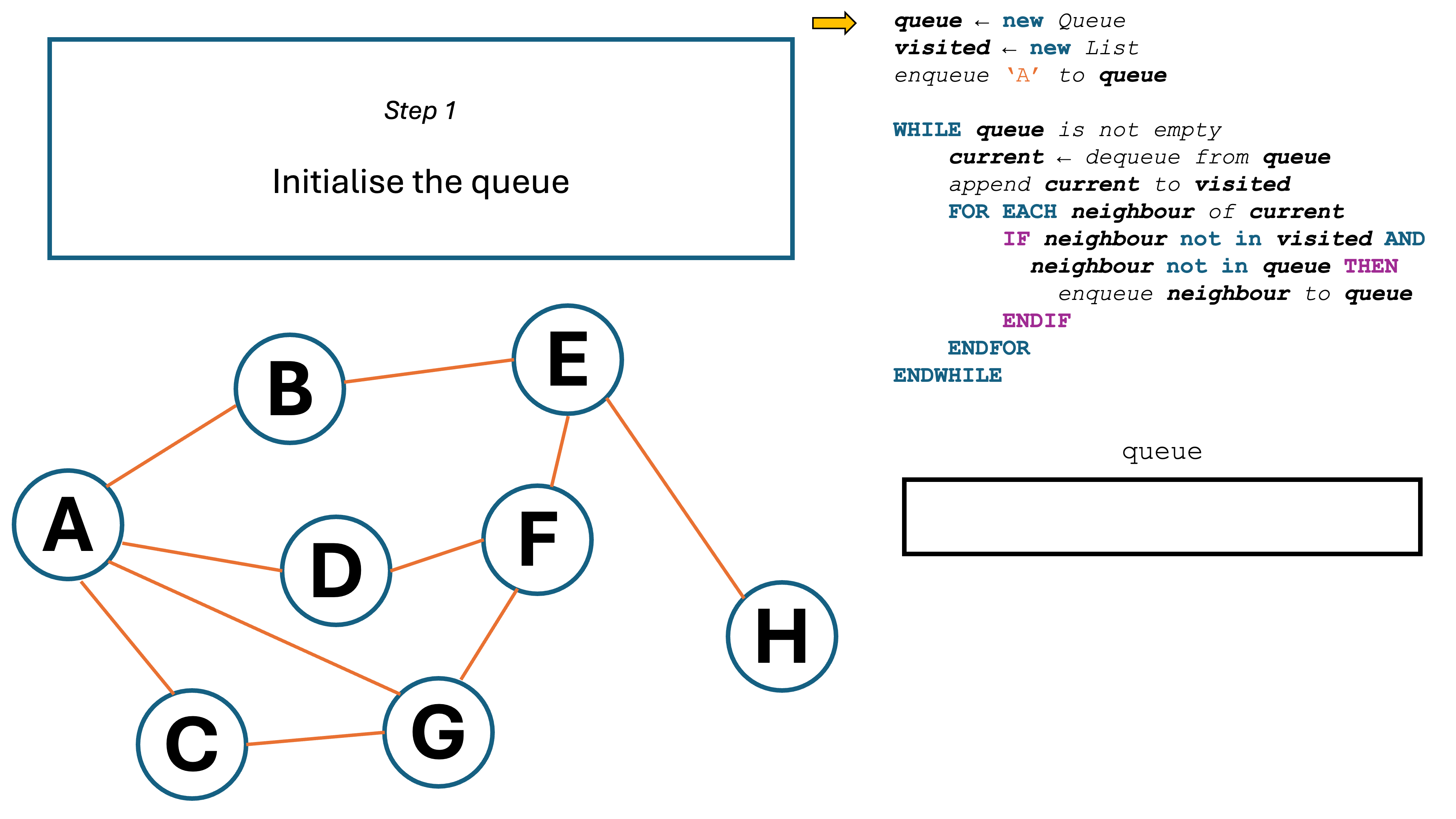

Diagram 2 shows a step-by-step animation of how a breadth-first traversal would work. Use the arrows to navigate.

Diagram 2

In this example, the program first hit all of the neighbours of A (B, C, D, and G), before hitting all of their neighbours (E and F), and then finally their neighbours (H).

---

What are some uses of depth-first and breadth-first traversal algorithms?

Depth-first traversal algorithms can be used to find a way out of a maze. Breadth-first traversal algorithms can be used to find the shortest path between two nodes.

---
